S2572-PRX, Renix Super Brackets, Pair

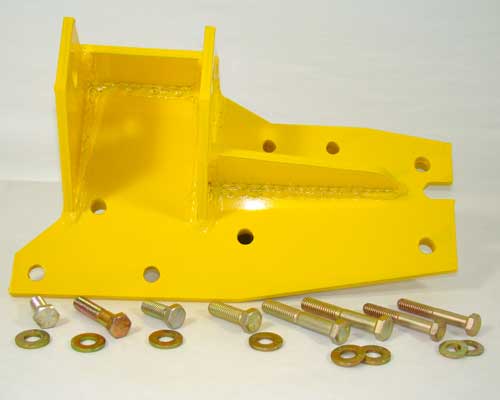

S2572-RE, Right/Passenger Side Super Engine Bracket

Price: $244.95

Part Number: S2572-PRX

Includes: Everything shown plus 1 sticker

Shipping: Free - USA & APO/FPO (military)

Warranty: Lifetime

Made in USA by: Brown Dog Industries

Quantity:

Brown Dog Pair Super Engine Brackets for Renix 4.0L I-6 Jeep Cherokee XJ and Comanche MJ

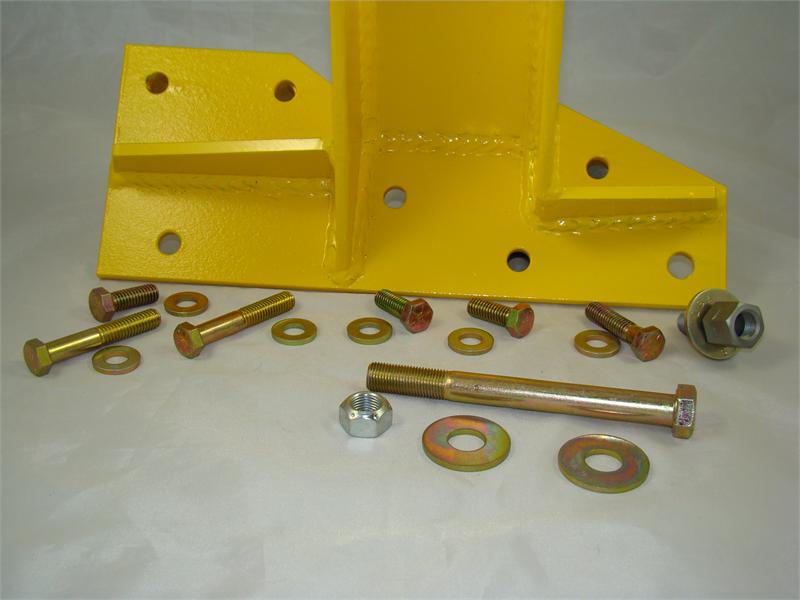

This pair (Left bracket shown, click to next photo to see Right Bracket) of Super Brackets features more attachment points than the original brackets to spread the stresses on engine block and bolts. Left bracket features up to seven bolts, four more than the original. Right bracket features eight bolts, five more than the original. No engine block modification necessary. Double-welded, all-steel construction for extra strength.

All Brown Dog engine brackets bolt directly to engine block and accept stock-height motor mounts (MMs) or 1" or 2" motor mount lifts (MMLs). Unique lipless bracket design will not interfere with installation of 1" or 2" MMLs.

When converting to these brackets, we strongly recommend upgrading to Brown Dog high-performance motor mounts or motor mount lifts. The original mounts, designed for street driving, simply won't stand up to the torsional forces experienced offroad.

Change mounts and brackets all at the same time and never have to do it again. Select one of the following kits and get both mounts and brackets.

Super Kit, S2572-0RX, includes Super Brackets & High-Performance Classic Polyurethane Motor Mounts.
Super Kit, SU2572-0RX, includes Super Brackets & High-Performance Ultra-Flex Rubber Motor Mounts.

Installation Hardware Included.
The Brown Dog ships all new Grade 8 hardware (or metric equivalent) required to bolt both brackets to all attach points in the existing engine block. Grade 8 through-bolts, lock nuts and washers are also included for securing brackets to motor mounts or motor mount lifts.

Renix Anti-Knock Sensor Adapter Included.

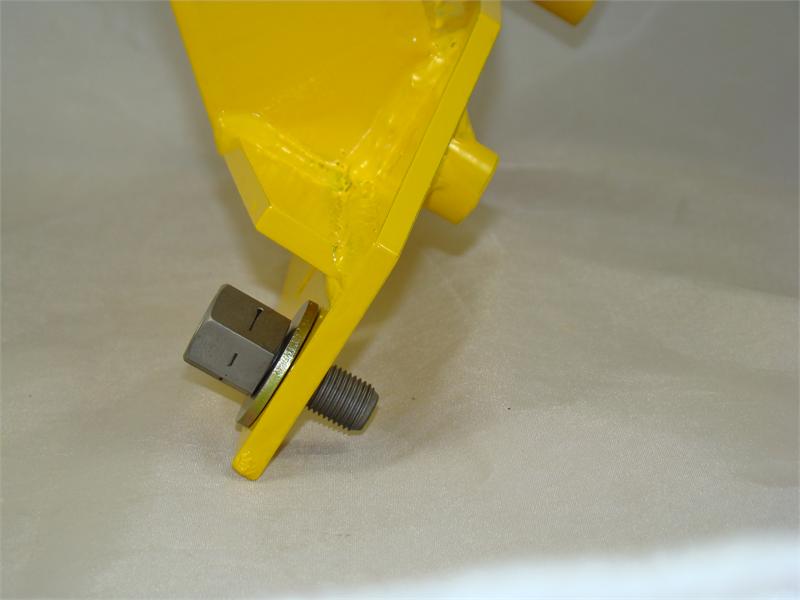

Also included with this engine block bracket is an adapter for use with the Renix Anti-Knock Sensor (PN RX2572). This adapter fits between the engine block and the sensor while accommodating for the bracket.

Application Notes:
Utilizes existing bolt pattern found on Renix 4.0L (6 cylinder) Jeep engines.

Cherokee XJ, Renix 4.0L I-6, 1987-1990
Comanche MJ, Renix 4.0L I-6, 1987-1990

Installation Notes

In preparation for installation, we suggest using brake fluid cleaner or PB Blaster to clean out the additional engine block thread bosses.
A copy of the installation instructions showing which holes take which bolts will be included with your bracket. We can also email it ahead of time when requested.
