S2883-P, Super Bracket, Pair
|
Part Number: S2883-P
Manufacturer: Brown Dog Industries
Includes: Everything shown plus 2 stickers Shipping: Free - USA & APO/FPO (military) addresses Warranty: Lifetime Made In: USA - Including all components Note: Also available separately
|
|

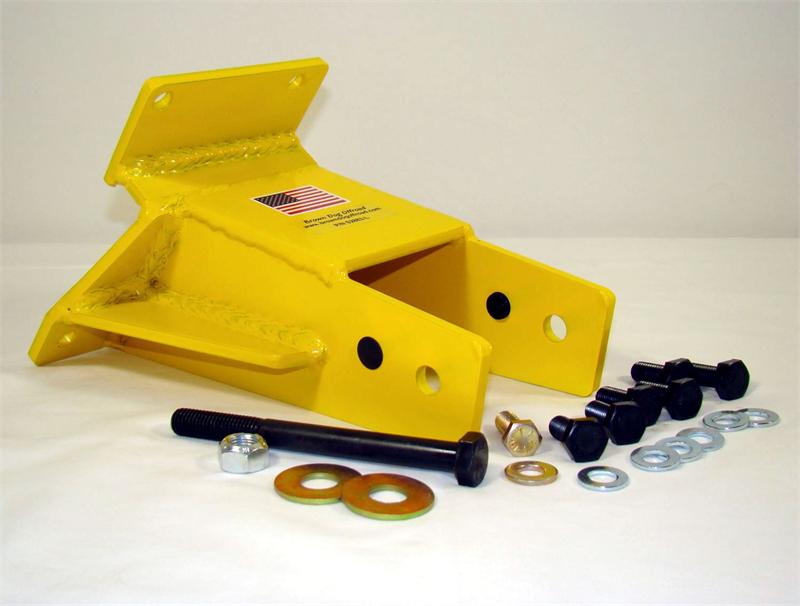

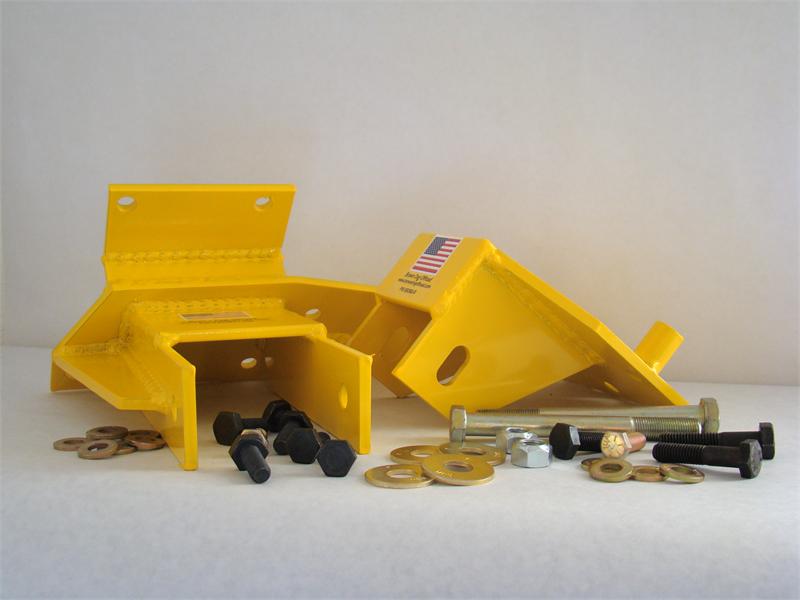

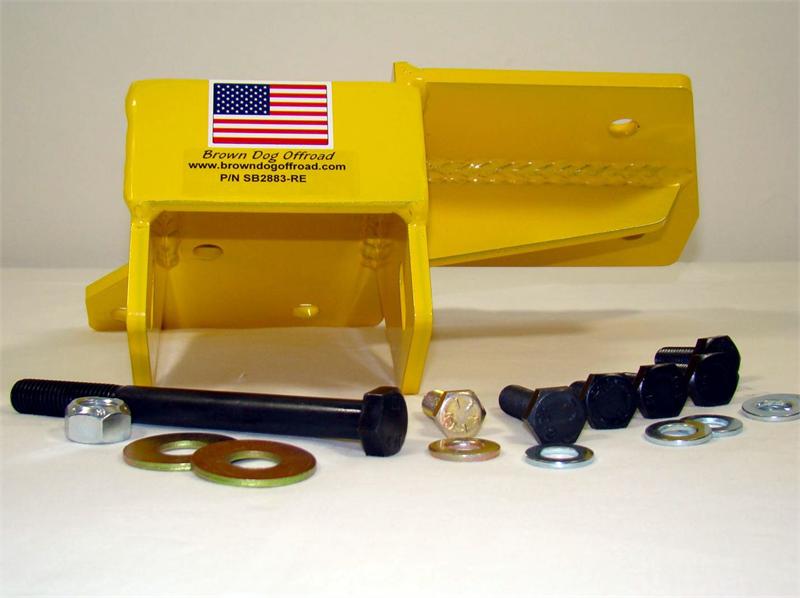

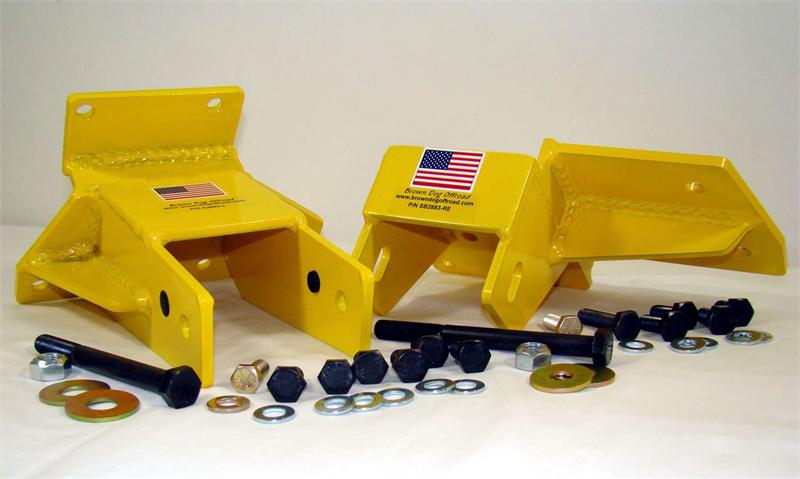

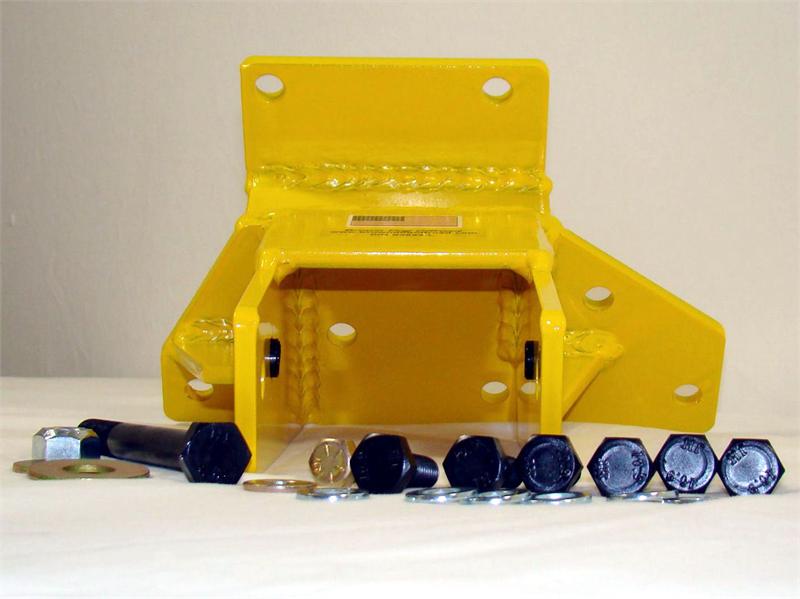

Brown Dog Super Engine Brackets (pair) for 2000-2006 4.0L TJ and LJ Wrangler

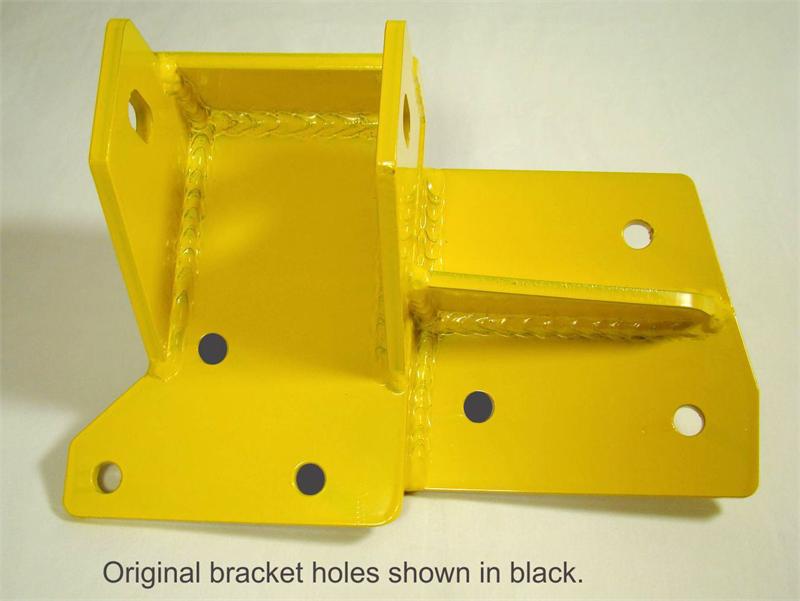

Known to shear or rip engine block bolts, the original brackets attach using three holes on each side. The Brown Dog designed these Super Strong Engine Brackets for 4.0L engines used in 2000-2006 Wrangler TJ and LJ. The left (driver) side all-steel, double-welded bracket uses the three original thread bosses and four others not used for any other purpose. The right (passenger) side uses the three originals and one additional boss. This virtually eliminates offroad torsional forces shearing bolts or ripping bolts from case. Installation requires no engine block modification nor relocation of engine accessories.
As with all Brown Dog engine brackets, these Super Brackets feature the Brown Dog's unique lipless design which eases installation of MMLs. This all-steel double-welded engine bracket accepts stock-height motor mounts (MMs) or 1" or 2" motor mount lifts (MMLs). Unique lipless bracket design will not interfere with installation of 1" or 2" MMLs.
Purchase brackets individually, as a pair, or in a kit with Brown Dog motor mounts. While these brackets will accommodate OE motor mounts, we recommend upgrading to Brown Dog high-performance motor mounts or motor mount lifts. The original mounts, designed for street driving, simply won't stand up to the torsional forces experienced offroad.
Change mounts and brackets all at the same time. And never have to do it again. Brown Dog Super Kit, S2883-0, includes a pair of Super Engine Brackets and Classic Polyurethane Motor Mounts. Upgrade kits, S2883-1 or S2883-2, include 1" or 2" Motor Mount Lifts (MMLs) with the Super Brackets. If Ultra-Flex Rubber motor mounts are desired, order the SU2883 series.
Hardware
The Brown Dog ships all new 10.9 hardness metric (replaces original 9.8 harness metric bolts) and Grade 8 SAE mounting hardware with this bracket. This includes all new block bolts and thru-bolts, lock nuts and washers for securing brackets to motor mounts (or motor mount lifts). Please note, a combination of metric and SAE bolts will be sent with the brackets to match the thread bosses per the Professional Engine Remanufacturing Association specifications. These specifications have been confirmed on our own engine block.
Application Notes
- Wrangler TJ/LJ, 2000-2006.
- When installing an engine from a 2000-2006 TJ or LJ, these brackets can also be used with earlier Wrangler TJ and YJ or Cherokee XJ. If installing a new engine and unsure if from a pre-1999 Wrangler or not, please call 866-401-3877 or email info@browndogindustries.com.
- Please note, all Cherokee XJ 4.0L engines (even those installed at the factory in 2000 and later) are the early model 4.0L which requires an S2752-L. Do not use these brackets on 4.0L engines originally installed in Cherokee XJ.
