B2569-P, Engine Brackets, Pair

Your Price: $189.95

Part Number: B2569-P

Made by : Brown Dog Industries

Includes: Everything shown plus 2 stickers

Shipping: Free - USA & APO/FPO (military) addresses

Warranty: Lifetime

Made In: USA - Including all components

Quantity:

Add to a new shopping list

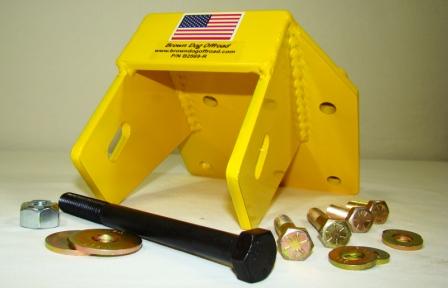

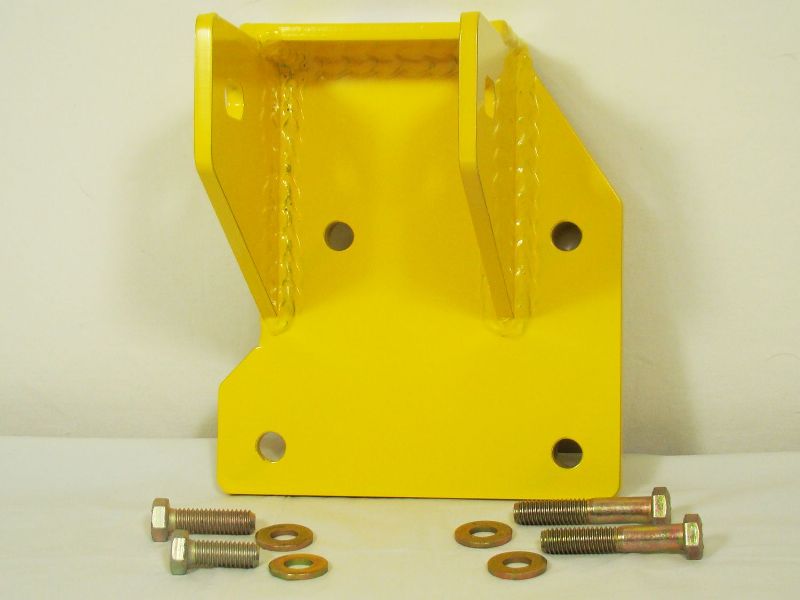

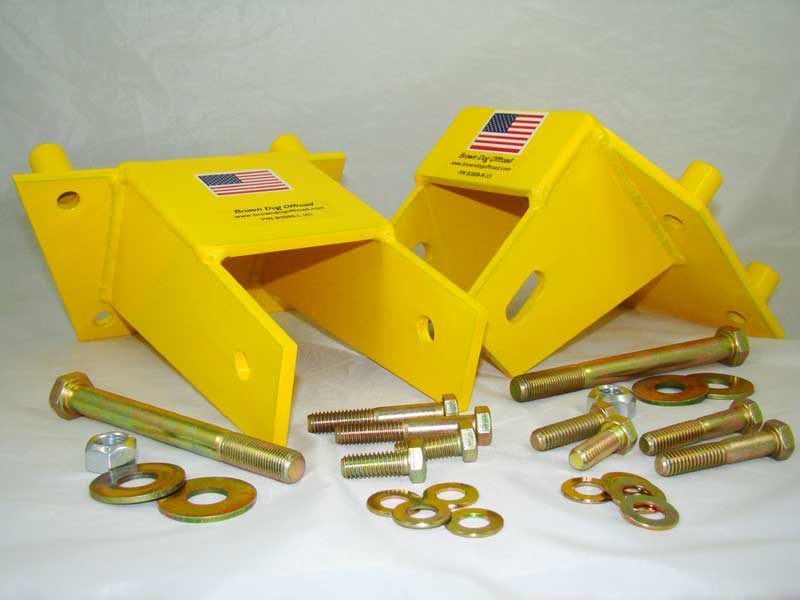

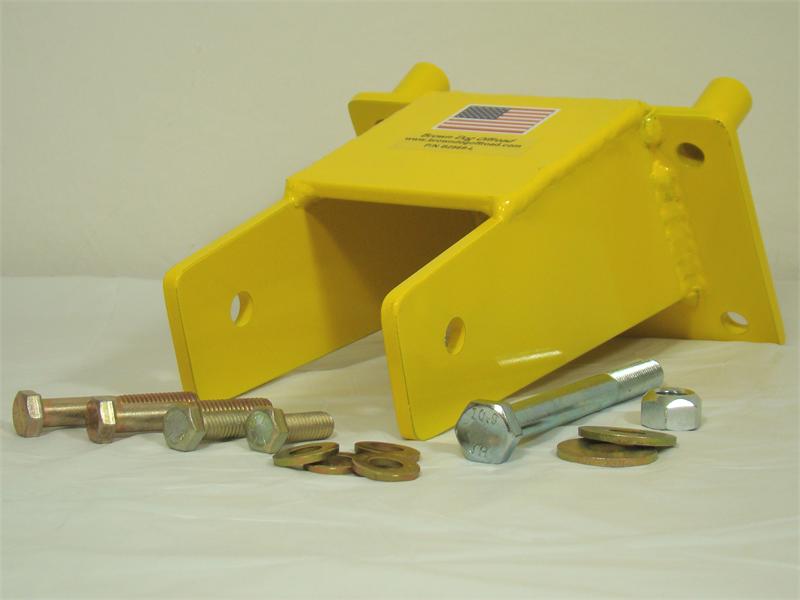

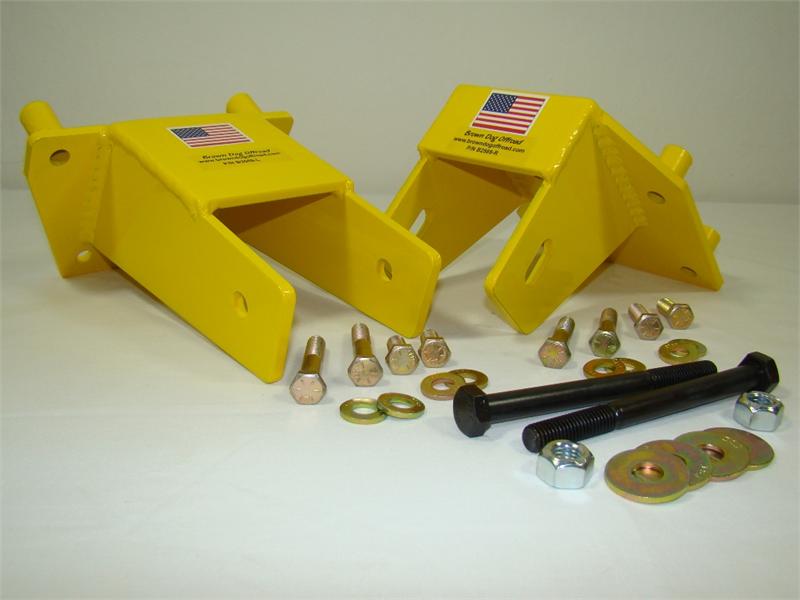

Brown Dog Engine Brackets for 2.5L I4 Jeep Wranglers, Cherokees, Comanche

Once you've seen a busted cast aluminum bracket, you'll know why you'll want to upgrade to these all steel engine brackets. With the torsional forces involved in off-roading today, why risk a sagging engine miles from civilization? Brown Dog Engine Bracket construction features double-welds throughout. Engineered for use with Brown Dog stock-height motor mounts (MMs) or 1" or 2" motor mount lifts (MMLs). Unique lipless bracket design will not interfere with installation of 1" or 2" MMLs.

Since we know first-hand how much fun it is to call dealerships, search online, and scour salvage yards for these difficult to locate brackets, we suggest you install both at once.

We strongly recommend upgrading to Brown Dog high-performance motor mounts or motor mount lifts when converting to these brackets. Stock mounts, designed for street driving, simply don't stand up to the torsional forces experienced offroad. Upgrade the entire engine mounting system for a more secure feeling on your next adventure.

Classic Polyurethane Upgrade Kits with Cradle (2.5L engines)

X2569-0, includes engine brackets, motor mounts, and cradle for driver-side mount.
X2569-1, includes engine brackets, 1" MML, and cradle for driver-side motor mount lift.
X2569-2, includes engine brackets, 2" MML, and cradle for driver-side motor mount lift.

Ultra-Flex Rubber Upgrade Kits with Cradle (2.5L engines)

XU2569-0, includes engine brackets, motor mounts, and cradle for driver-side mount.
XU2569-1, includes engine brackets, 1" MML, and cradle for driver-side motor mount lift.
XU2569-2, includes engine brackets, 2" MML, and cradle for driver-side motor mount lift

For vehicles that do NOT need a cradle under the right mount, order

K2569 Series, Classic Polyurethane.
KU2569 Series, Ultra-Flex Rubber.

Hardware
The Brown Dog ships all new Grade 8 hardware required to bolt brackets to engine block. All new Grade 8 through-bolts, lock nuts and washers are also included for securing brackets to motor mounts or motor mount lifts.

Application Notes:

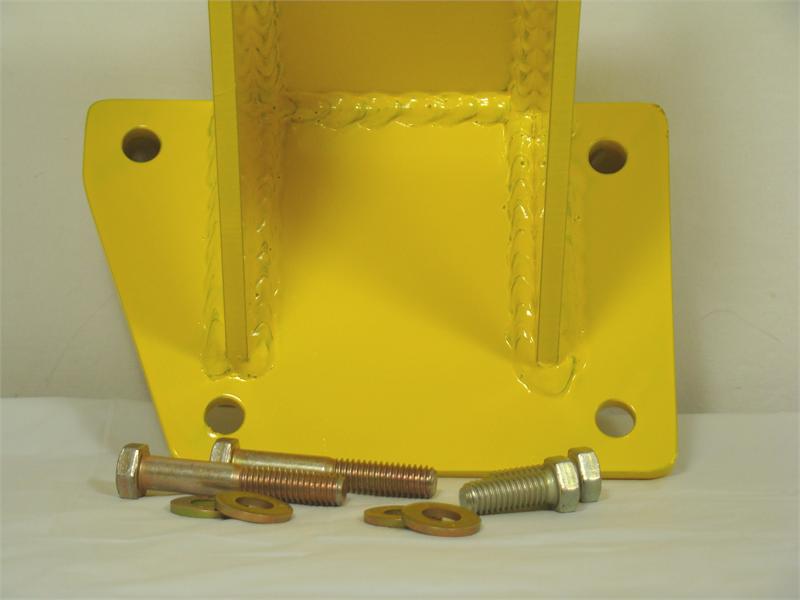

Utilizes existing bolt pattern found on 2.5L (4 cylinder) Jeep engines shipped originally with

Wrangler YJ, 2.5L I-4, 1991-1995*
Wrangler TJ, 2.5L I-4, 1997-2002

* Note: If using original Jeep motor mounts, both motor mounts will need to be replaced with a pair of TJ (not YJ) motor mounts or a pair of Brown Dog motor mounts. On YJ, carefully inspect the "cradle" holding the right motor mount for cracks or other signs of wear. (Cradle is squeezed between pylon and motor mount on driver side only.) If this part needs replaced, order Brown Dog part number CR2569. TJ 2.5/2.4 do not have this cradle.
