B2569-R, Engine Bracket, Right, 2.5L
|
Free Shipping - All products, all USA and military addresses
Manufacturer: Brown Dog Industries
|
|
|

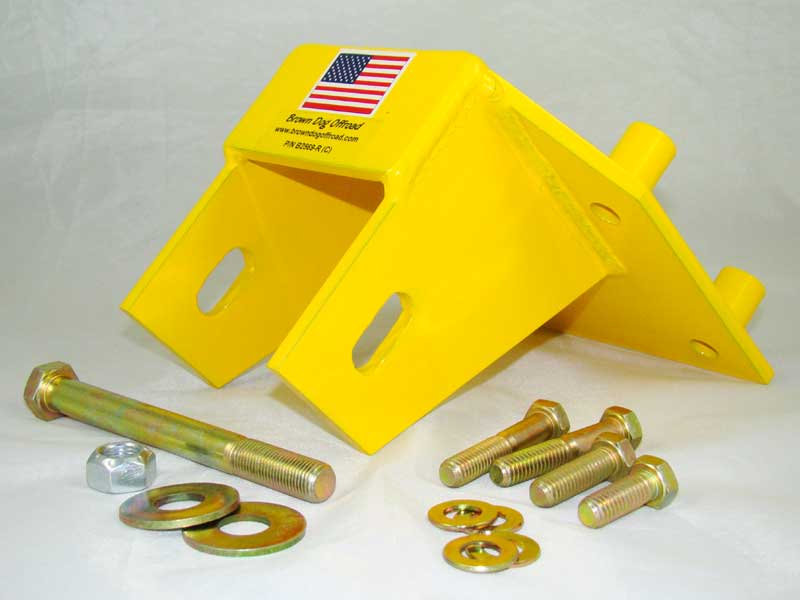

Brown Dog Right Engine Bracket for 2.5L I4 Jeep
Once you've seen a busted cast aluminum bracket, you'll know why you'll want to upgrade to this all-steel engine bracket. With the torsional forces involved in off-roading today, why risk a sagging engine miles from civilization? Brown Dog Engine Bracket construction features double-welds throughout. Engineered for use with stock-height motor mounts (MMs) or 1" or 2" motor mount lifts (MMLs). Unique lipless bracket design will not interfere with installation of 1" or 2" MMLs.
Since we know first-hand how much fun it is to call dealerships, search online, and scour salvage yards for these difficult to locate brackets, we suggest you install both at once.
We strongly recommend upgrading to Brown Dog high-performance motor mounts or motor mount lifts when converting to these brackets. Stock mounts, designed for street driving, simply don't stand up to the torsional forces experienced offroad. Upgrade the entire engine mounting system for a more secure feeling on your next adventure.
Classic Polyurethane Upgrade Kits with Cradle (2.5L engines)
-
X2569-0, includes engine brackets, motor mounts, and cradle for driver-side mount.
-
X2569-1, includes engine brackets, 1" MML, and cradle for driver-side motor mount lift.
-
X2569-2, includes engine brackets, 2" MML, and cradle for driver-side motor mount lift.
Ultra-Flex Rubber Upgrade Kits with Cradle (2.5L engines)
-
XU2569-0, includes engine brackets, motor mounts, and cradle for driver-side mount.
-
XU2569-1, includes engine brackets, 1" MML, and cradle for driver-side motor mount lift.
-
XU2569-2, includes engine brackets, 2" MML, and cradle for driver-side motor mount lift
For vehicles that do NOT need a cradle under the right mount, order
-
K2569 Series, Classic Polyurethane.
-
KU2569 Series, Ultra-Flex Rubber.
Hardware
The Brown Dog ships all new Grade 8 hardware required to bolt bracket to engine block. All new Grade 8 through-bolts, lock nuts and washers are also included for securing bracket to motor mounts or motor mount lifts. Application Notes:
Utilizes existing bolt pattern found on 2.5L (4-cylinder) engines shipped originally with
-
Wrangler YJ, 2.5L I-4, 1991-1995*
-
Wrangler TJ, 2.5L I-4, 1997-2002
-
Cherokee XJ, 2.5L I-4, 1991-1996*
-
Cherokee XJ, 2.5L I-4, 1997-2000
-
Comanche MJ, 2.5L I-4, 1991-1992*
* Note: If using original Jeep motor mounts, the right motor mount will need to be replaced with a TJ motor mount or a Brown Dog motor mount. Carefully inspect the "cradle" holding the right motor mount for cracks or other signs of wear. (Cradle is squeezed between pylon and motor mount on driver side only.) If this part needs replaced, order Brown Dog part number CR2569.
Free shipping - USA and APO/FPO addresses using USPS 2-3 day service. International customers pay reasonable shipping fee. Never a "handling charge."
|
|
|
|
|
|
Cradle (aka bracket) found below motor mount on one side only. Prone to breaking, it's difficult to find original stamped cradle at Jeep dealers or salvage yards. Due to location, inspection is nearly impossible without first removing motor mount.
|
|
|
|
|
|
|
|
|
|
This bolt-on upgrade kit prevents a broken bracket or sagging engine miles from civilization. Includes pair engine brackets, pair Classic Polyurethane Motor Mounts, and a motor mount support cradle.
|
|
|
|
|
|
|
|
|
|
This bolt-on upgrade kit prevents a broken bracket or sagging engine miles from civilization. Includes pair engine brackets, pair Ultra-Flex Rubber Motor Mounts, and a motor mount support cradle.
|
|
|
|
|
|
|
|
