C2572-0K2, Motor Mounts, Classic Polyurethane
|
Part Number: C2572-0K2
Manufacturer: Brown Dog Industries
Includes: Everything shown plus 2 stickers Shipping: Free - USA & APO/FPO (military) addresses Warranty: Lifetime - Except replaceable bushings Made In: USA - Including all components
|
|

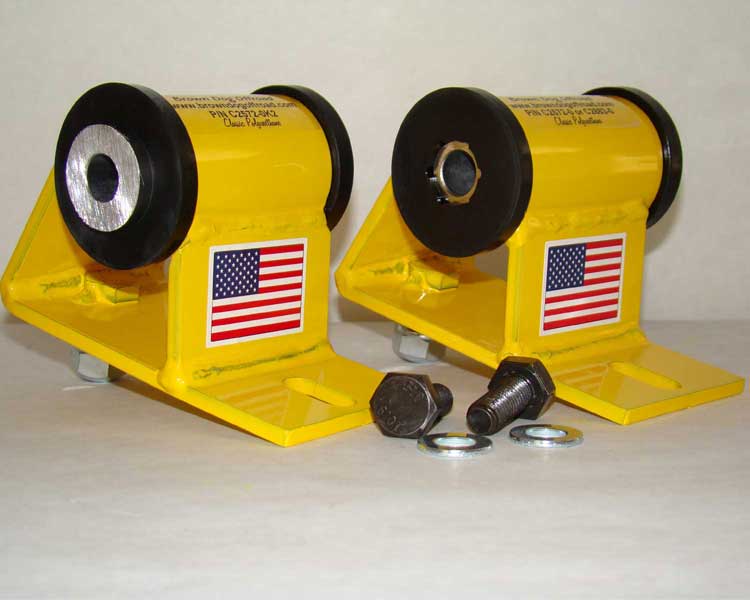

Jeep Cherokee and Comanche Motor Mounts, Stock Height (Pair)
The Brown Dog has experienced a couple busted stock motor mounts himself, on his own Jeep. This is why we engineered these replacement motor mounts for extreme strength. You'll find these mounts a serious upgrade from most other mounts, too.
High performance design.
We engineered these motor mounts for extreme strength, ease of installation, and long-life featuring replaceable bushings. In fact, we believe you'll find these a serious upgrade, especially when encountering the torque often experienced in offroad conditions (and even on the streets and highways where potholes make it seem like offroad).
Extreme strength.
These Cherokee XJ & Comanche MJ motor mounts are all steel and feature double-welded joints to provide the most strength possible. And, just to make sure, we periodically pull a set of mounts off the shelf and put them through our 20-Ton Press Test. We have yet to see a Brown Dog high performance motor mount or motor mount lift with a structural failure ... even those used in the toughtest competition events.
Bolts directly to original equipment brackets.
Unlike most other high-performance motor mounts, these do not require trimming or grinding to fit. We've designed the left (driver side) mount to accommodate the lip inside the left engine bracket arms (that interferes with most other high performance motor mounts) found on most XJ & MJ. You get the full benefit of bolt-in convenience.
Classic Polyurethane bushings.
The Classic Polyurethane bushings in this set of Brown Dog motor mounts will give your rig a sportier feel. Prefer our proprietary Ultra-Flex Rubber bushings? We offer all motor mounts and motor mount lifts with either polyurethane or rubber to match your preference. Not sure which is for you? Click here.
Backed by Brown Dog Promise.
Brown Dog motor mounts will be the last set of mounts you'll need. The Brown Dog gives you his lifetime promise.
Free shipping.
All products ship free to all USA and APO/FPO addresses. International customers pay reasonable shipping fee. Never a "handling fee." Click here for shipping policy.
Installation Notes
- Mounts slide into original equipment engine brackets, in the identical position as the stock mounts. No trimming or grinding required.
- Engine remains in original stock position. If your old motor mounts were in bad condition, these mounts will return your engine to its stock position.
-
Carefully inspect engine bracket for any excess wear, especially cracks. The original brackets weren't designed to handle the strength of these high-performance motor mounts. If brackets show wear, order K2572-0 or S2572-0 which include both Motor Mounts, both Engine Brackets, and all new Grade 8 mounting hardware including new through bolts. However, the left (driver-side) motor mount is identical to the right side in the kit. This makes for a stronger all-around upgrade. If, after you have our "K" series mounts, you need brackets, be sure to call and discuss options. It's always in your best interest to order the brackets and mounts at once and save a few bucks along the way.
-
Loosen transmission mount prior to raising engine. Failure to do this will result in excessive vibration after motor mount installation. We recommend replacing transmission mount when replacing motor mounts. However, at a minimum, loosen bolts and carefully inspect for wear.
-
Tighten thru-bolts (bolt that goes through bracket arms and motor mount) snug. Do not overtighten through-bolt locknuts. Please remember, locknuts are for one-time use only. If removed, they should be replaced, not re-used. Air tools should not be used here.
-
These motor mounts will bolt to frame-side brackets in the same location as your original motor mounts. These bolts should be tightened like most others on your Cherokee or Comanche. Nice and tight.
-
If you have any questions during installation or believe a part will not fit, do NOT alter the part. Call Brown Dog, 866 401-3877 or email info@browndogindustries.com. We have extended support to assist with installation.
Application Notes
These motor mounts are for use with original equipment engine brackets, only.
-
Jeep Cherokee XJ, 6-Cylinder (4.0L/242ci), 1987-2001
-
Jeep Comanche MJ, 6-Cylinder (4.0L/242ci), 1987-1992
|
|
|
|
