Brown Dog Offroad - Jeep Engine Mounts & Brackets

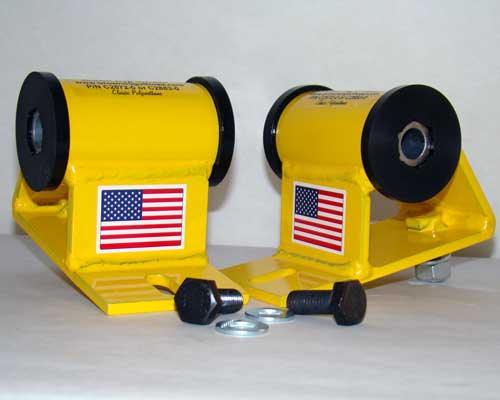

C2883-0, Motor Mounts, Classic Polyurethane
 Brown Dog polyurethane Motor Mounts for 1997-2006 4.0L Jeep Wrangler TJ, LJ   |
|
Part Number: C2883-0
Made by : Brown Dog Industries
Includes: Everything shown plus 2 stickers Shipping: Free - USA & APO/FPO (military) addresses Warranty: Lifetime - Except replaceable bushings Made In: USA - Including all components
|
|
The Brown Dog has experienced a couple busted stock motor mounts himself, on his own Jeep Wrangler. This is why we engineered these high performance motor mounts for extreme strength. You'll find these mounts a serious upgrade from most other mounts, too.
High Performance Design.
We use steel and feature double-weld joints to provide the most strength possible. And, just to make sure, we periodically pull a set of mounts off the shelf and put them through our 20-Ton Press Test. We have yet to see a Brown Dog Motor Mount or Motor Mount Lift with a structural failure.
Featuring Classic Polyurethane Bushings.
The Classic Polyurethane bushings in this set of Brown Dog motor mounts will give your rig a sportier feel. If the bushings ever start to wear, replacements are available from Brown Dog Offroad. Prefer our proprietary Ultra-Flex Rubber bushings? We offer all motor mounts and motor mount lifts with either polyurethane or rubber to match your preference. Not sure which is for you? Click here.
Installation Notes
- Mounts bolt directly to the pylons, in the identical position of the stock mounts. No grinding. No trimming.
- Secures 4.0L engine in original stock position.
- Carefully inspect engine brackets for any excess wear, especially cracks. The original brackets weren't designed to handle the strength of these high-performance motor mounts. If brackets show wear, order appropriate kit for your vehicle engine and year. All Brown Dog Kits include both motor mounts and both engine brackets.
-
Tighten through-bolts (bolt that goes through bracket arms and motor mount) snug. Do not over-tighten through-bolt lock nuts. Please remember, lock nuts are for one-time use only. If removed, they should be replaced, not re-used. Air tools should not be used here.
-
Pylon bolts should be tightened like most others on your Jeep frame. Nice and tight.
-
If you have any questions during installation or believe a part will not fit, do NOT alter the part. Call Brown Dog, 866 401-3877. We have extended support to assist with installation.
Application Notes
|
|
|
|
|
|
Replaces through-bolts, locknuts, & washers originally installed through your Jeep motor mounts and Jeep OEM engine brackets. (All Brown Dog Brackets include through-bolts, no charge. Order these only if needed for OE brackets.)
|
|
|
|
|
|
|
|
