Brown Dog Offroad - Jeep Engine Mounts & Brackets

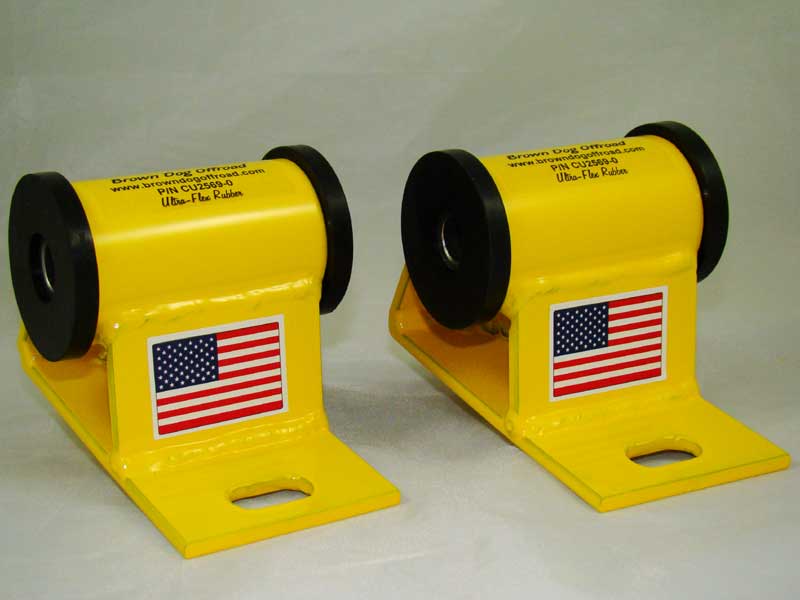

CU2569-0, Motor Mounts, Ultra-Flex Rubber
|
|
Part Number: CU2569-0
Made by : Brown Dog Industries
Includes: Everything shown plus 2 stickers Shipping: Free - USA & APO/FPO (military) addresses Warranty: Lifetime - Except replaceable bushings Made In: USA - Including all components
|
|
The Brown Dog has experienced a couple busted stock motor mounts himself, on his own Wrangler. This is why we engineered motor mounts and motor mount lifts for extreme strength. You'll find these mounts a serious upgrade from most aftermarket mounts, too.
High Performance Design.
We use steel and feature double-weld joints to provide the most strength possible. And, just to make sure, we periodically pull a set of mounts off the shelf and put them through our 20-Ton Press Test. We have yet to see a Brown Dog MM or MML with a structural failure.
Featuring Ultra-Flex Rubber Bushings.
These Brown Dog motor mounts feature Ultra-Flex Rubber bushings designed to help dampen drive-line vibration. If this is your daily driver, you may find these bushings well worth the extra money. Should you ever need to replace the bushings, well have them. Prefer Classic Polyurethane bushings? We offer all motor mounts and motor mount lifts with either polyurethane or rubber to match your preference. Not sure which is for you? Click here.
Installation Notes.
- Engine remains in stock position.
-
Mounts bolt into the identical locations as the stock mounts.
-
The left (driver side) bolts directly to pylon (Wrangler YJ) or to frame-side bracket (Cherokee XJ & Comanche MJ).
-
The right (passenger side) bolts to a cradle which, in turn, bolts to pylon or frame-side bracket.
-
Check cradle carefully for cracks, if in good condition, you may wish to reuse your existing cradle. However, many customers have removed the mount to replace it and then saw the cradle busted into a couple pieces. You may want to order the cradle (Brown Dog Part Number CR2569) with the motor mounts.
-
Carefully inspect engine bracket (bolts to the engine block) for any excess wear, especially cracks. The original cast aluminum brackets found on many 4-cylinder Jeep of this era weren't designed to handle the strength of these high-performance motor mounts. If you need brackets, order the following kit.
-
KU2569-0 Upgrade Kit for 1997-2002 TJ
-
XU2569-0 Upgrade Kit for 1991-1996 2.5L YJ, MJ, or XJ. (Includes a the cradle on the passenger side on these vehicles.)
- If you have any questions during installation or believe a part will not fit, do NOT alter the part. Call Brown Dog, 866 401-3877. We have extended support to assist with installation.
Application Notes.
- Jeep Wrangler YJ, 2.5L (150ci), 1991-1995
|
|
|
|
|
|
Replaces through-bolts, locknuts, & washers originally installed through your Jeep motor mounts and Jeep OEM engine brackets. (All Brown Dog Brackets include through-bolts, no charge. Order these only if needed for OE brackets.)
|
|
|
|
|
|
|
|
