S2883-0, Super Kit, Classic Polyurethane


Your Price: $309.95
Part Number: S2883-0
Made by : Brown Dog Industries
Includes: Everything shown plus 2 stickers
Shipping: Free - USA & APO/FPO (military) addresses
Warranty: Lifetime - Except replaceable bushings
Made In: USA - Including all components
Note: Mounts, brackets also available separately

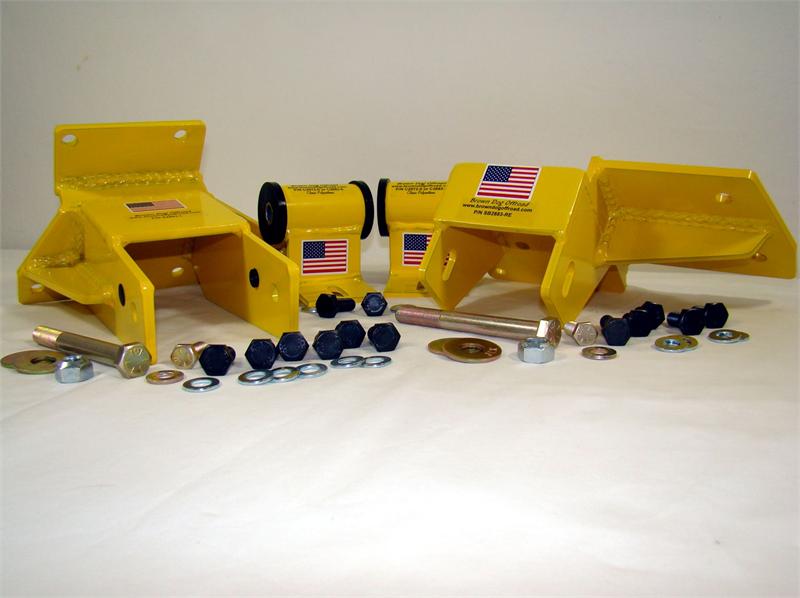

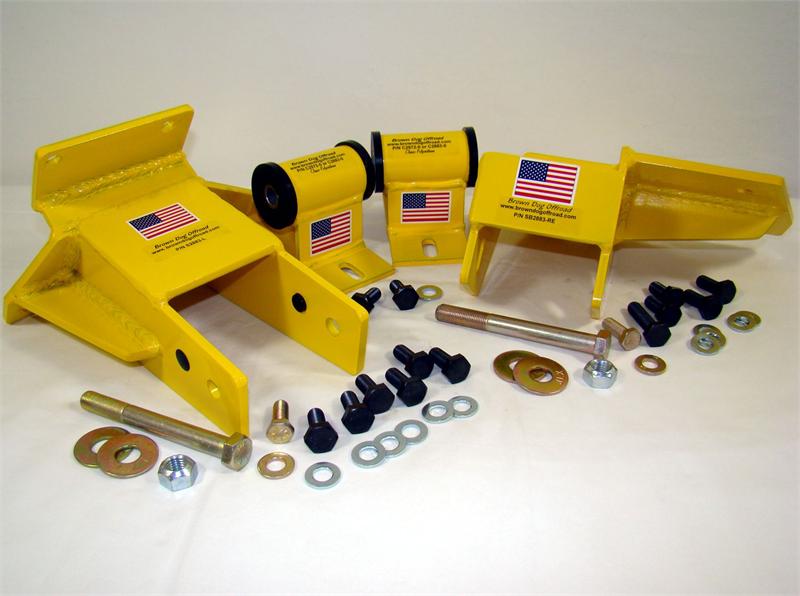

Super Kit: Includes Super Engine Brackets and Classic Polyurethane Motor Mounts for 2000-2006 4.0L Jeep TJ and LJ

Change engine mount system never have to do it again.
  • Super Strong Engine Brackets - 7 Bolts, Left; 6 Bolts, Right
  • High Performance Classic Polyurethane Motor Mounts - Stock Height
  • All Grade 8 Hardware or 10.9 Metric Equivalent.

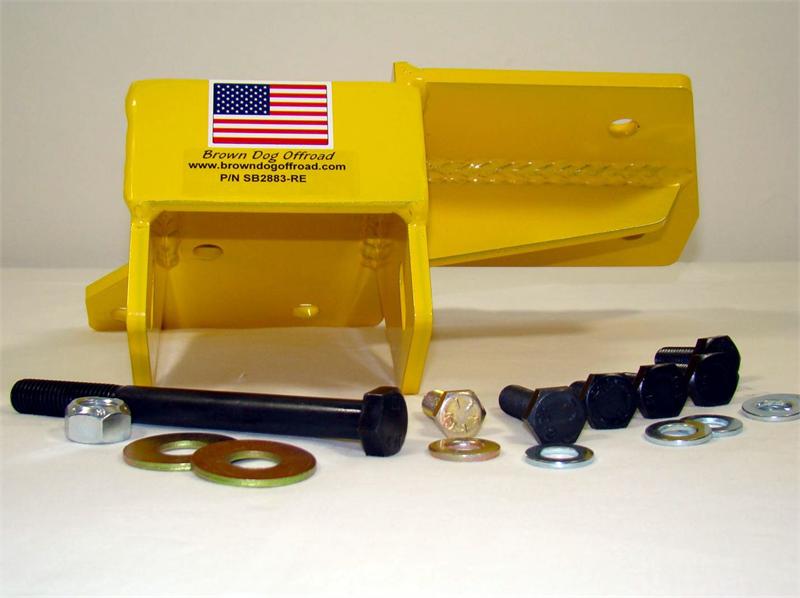

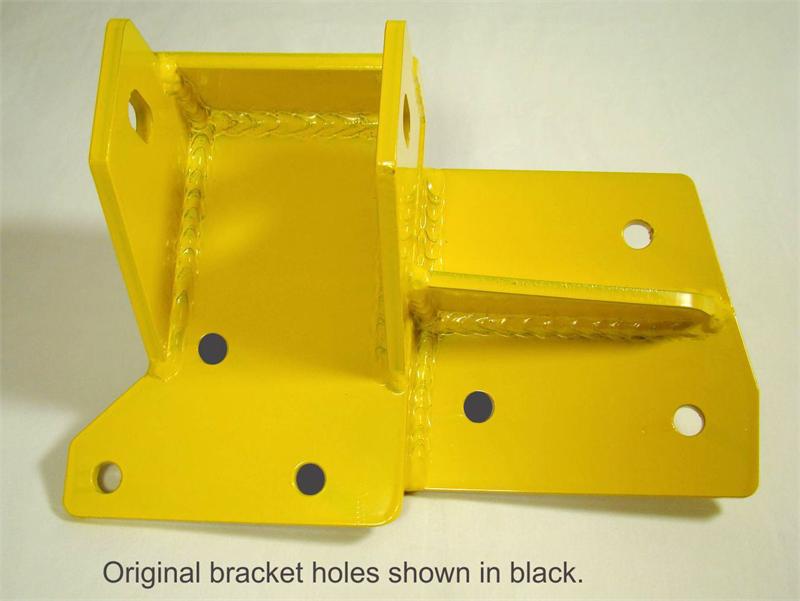

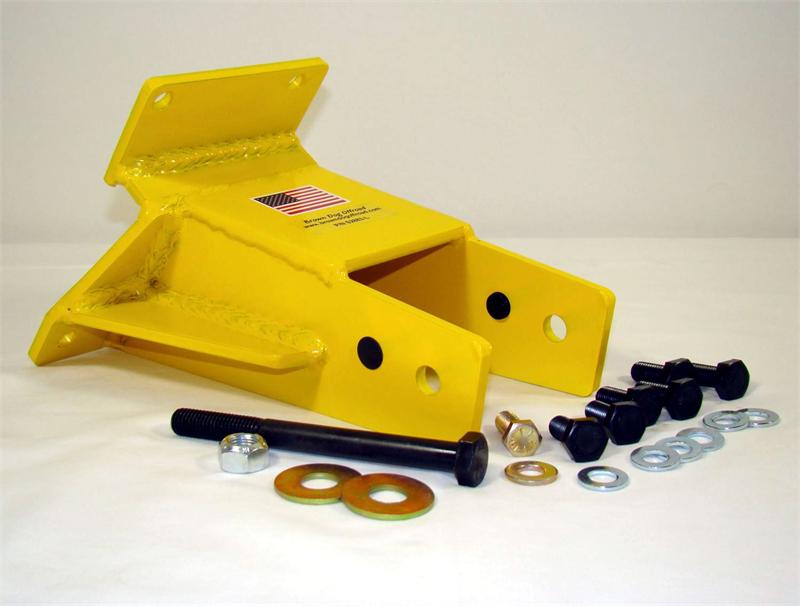

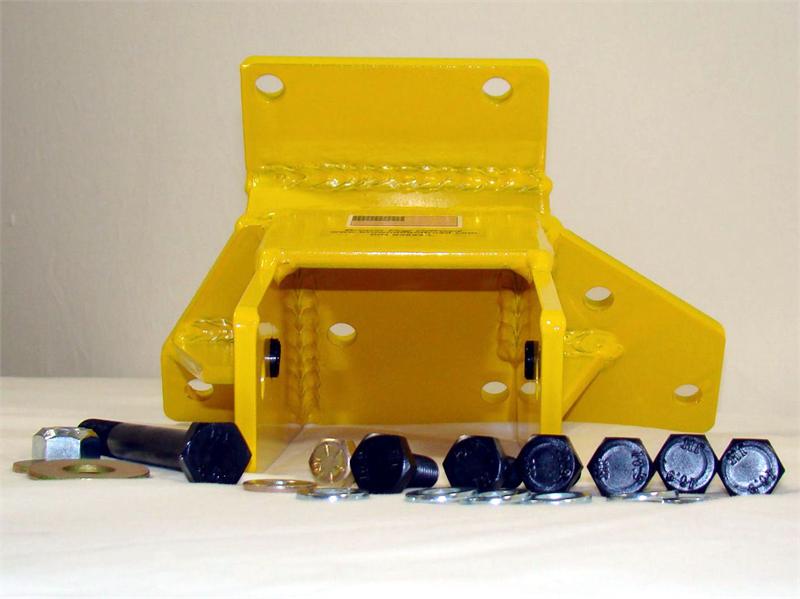

Super Engine Brackets virtually eliminate offroad torsional forces snapping bolts or ripping the bracket from the case. Featuring more attach points than the original brackets, the design spreads engine block attachment stress loads. Left bracket features seven bolts, four more than the original. Right bracket features six bolts, three more than the original. Double-welded, all-steel construction for extra strength. No engine block modification necessary. Fits up to existing 4.0L engine block bolt pattern originally found on 2000-2006 Jeep Wrangler TJ and LJ.

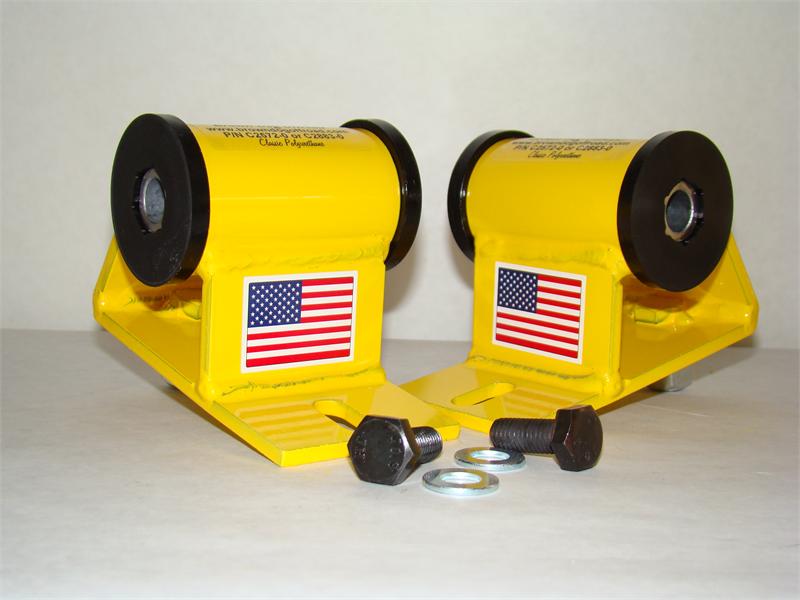

High Performance Classic Polyurethane Motor Mounts feature all-steel, double-welded construction. Stock-height, these are high-strength replacements for the originals. Designed to stand up to the toughest trails Arizona can dish out. (Sorry Utah, we can't stand the cold.) When compared to the originals and most others, these are a substantial upgrade. The original mounts, designed for street driving, simply won't stand up to the torsional stress experienced offroad.  Prefer Ultra-Flex Rubber to absorb drive line vibration? Check out Super Kit SU2883-0. Not sure whether to select Classic Polyurethane or Ultra-Flex Rubber? Compare here.

Ships with Grade 8 Hardware (or 10.9 metric equivalent) required to bolt engine brackets to existing engine block bolt pattern. Also includes new Grade 8 thru-bolts, lock nuts and washers for securing brackets to motor mounts.

Looking for Motor Mount Lifts? Check out our Super Kit, S2883-1, which includes 1" Mount Lifts (MMLs) and our Super Engine Brackets. MMLs are often used to correct drive-line angle problems. Super Brackets feature unique lipless bracket design will not interfere with installation of 1" or 2" MMLs.

Application Notes



  • Wrangler TJ and LJ, 4.0L I-6, 2000-2006
Installation Notes
  • In preparation for installation, we suggest using Navel Jelly or PB Blaster with a wire spiral brush to clean out the additional engine block thread bosses.
  • Since M10 and 3/8 thread bosses are very, very similar, we do not suggest re-tapping holes.
  • A copy of the installation instructions showing which holes take which bolts will be included with your bracket. We can also email it ahead of time when requested.
