SU2883-1, Super Kit, 1" Engine Lift, Ultra Flex Rubber

View Larger Image

Your Price: $339.95

Part Number: SU2883-1

Manufacturer: Brown Dog Industries

Includes: Everything shown plus 2 stickers

Shipping: Free - USA & APO/FPO (military) addresses

Warranty: Lifetime - Except replaceable bushings

Made In: USA - Including all components

Note: Mounts, brackets also available separately

Quantity:

Add to a new shopping list

Email this page to a friend

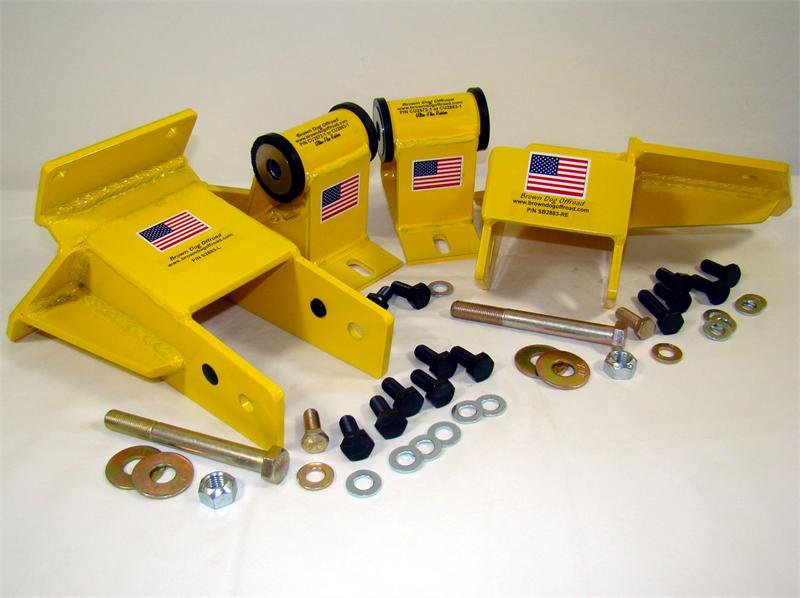

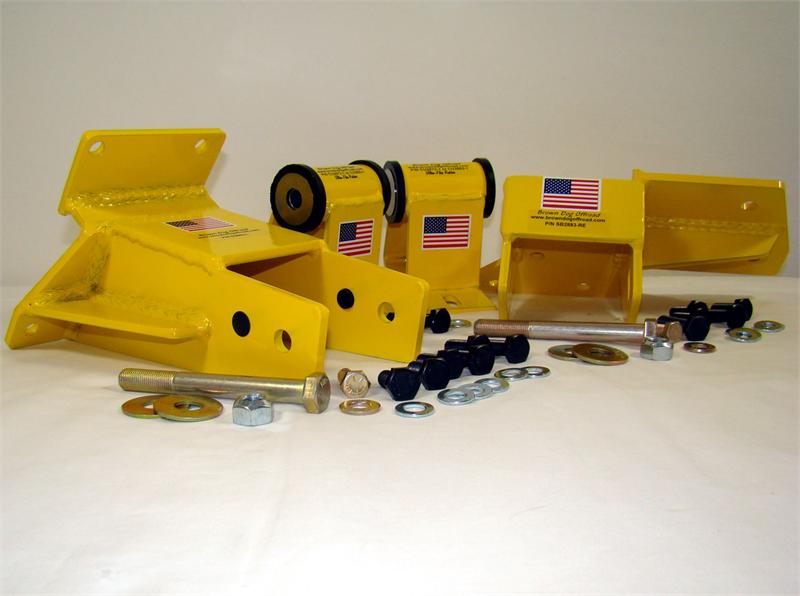

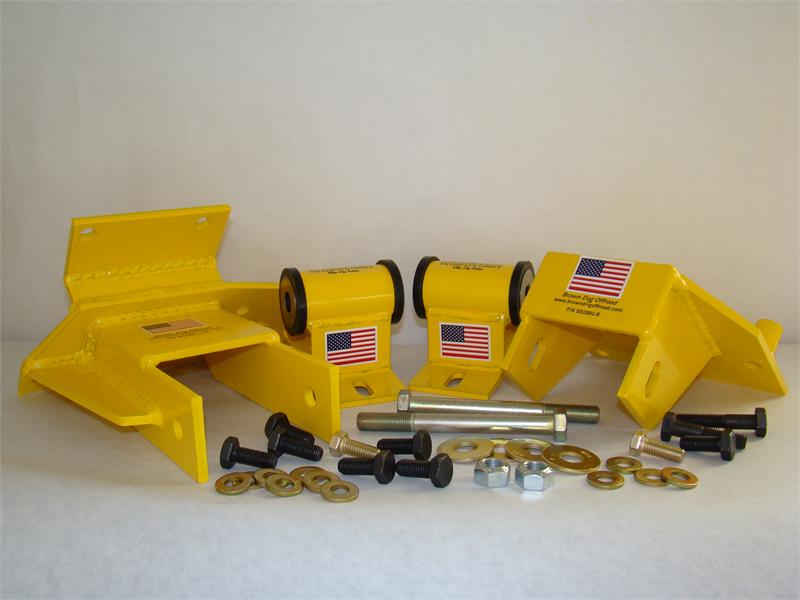

Super Kit: Includes Super Engine Brackets & Ultra-Flex Rubber 1" Motor Mount Lifts for 4.0L I-6 TJ and LJJeep

Change entire engine mount system and never have to do it again.

Super Strong Engine Brackets - 7 Bolts, Left; 4 Bolts, Right
High Performance Ultra-Flex Rubber 1" Motor Mount Lifts - Raises Engine 1" at Radiator Fan
All Grade 8 Hardware or 10.9 Metric Equivalent.

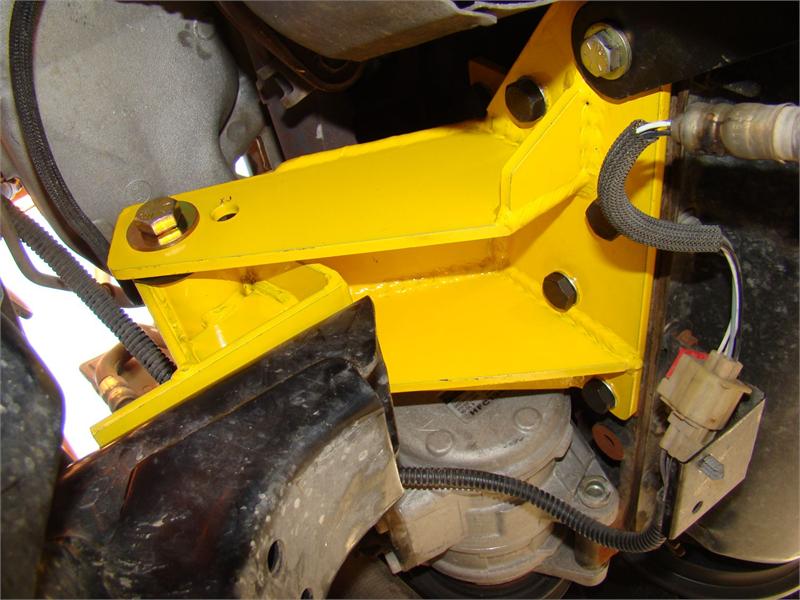

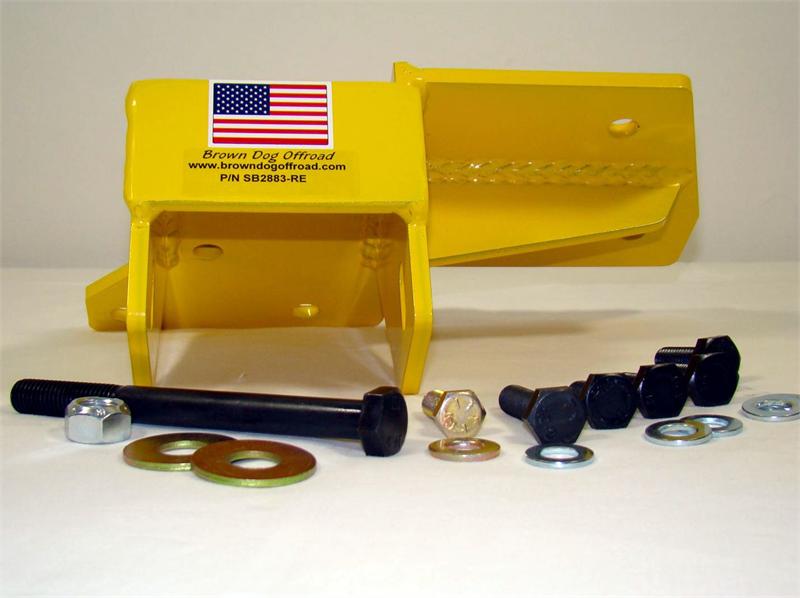

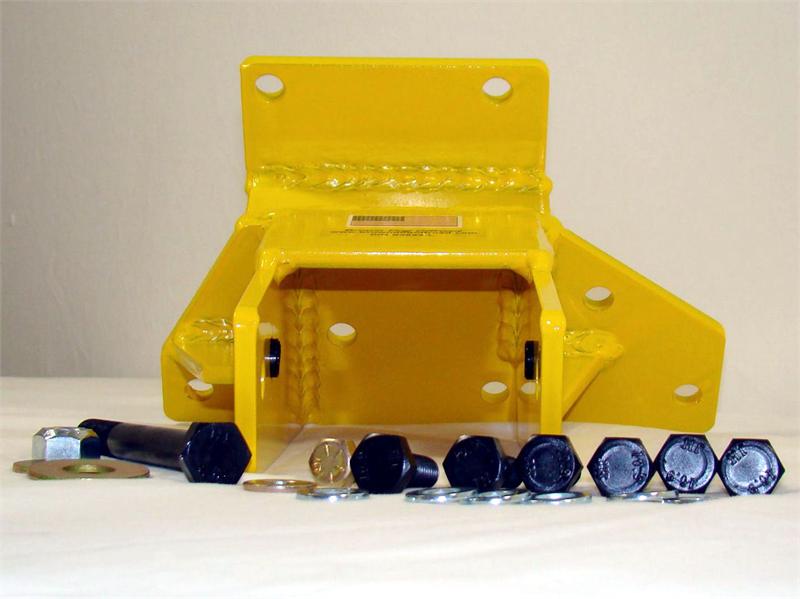

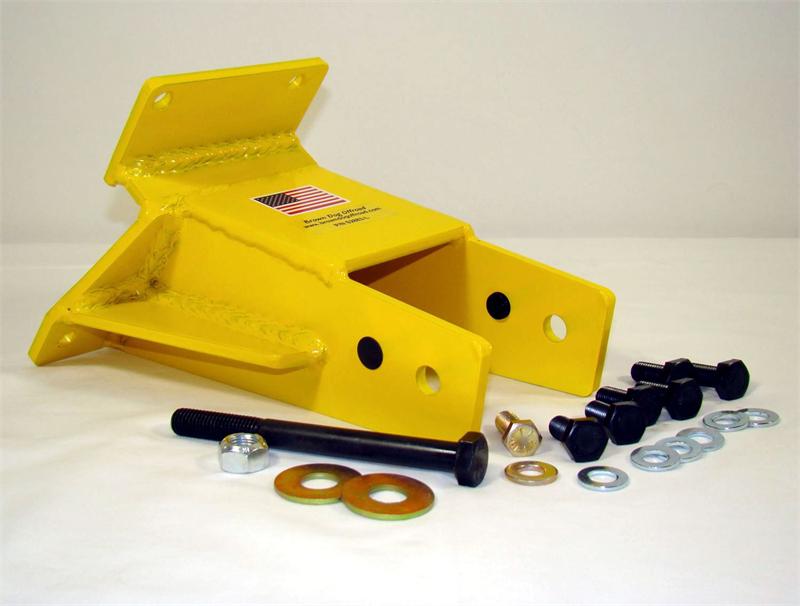

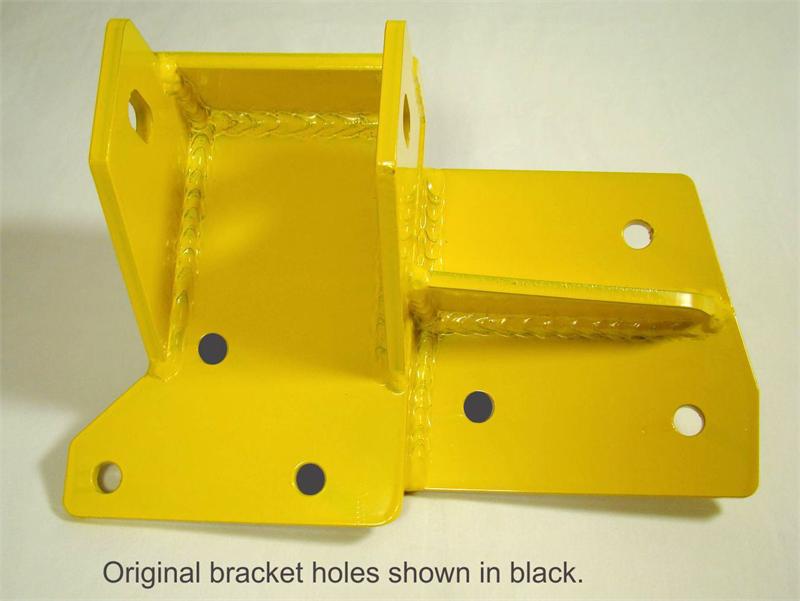

Super Engine Brackets virtually eliminate offroad torsional forces snapping bolts or ripping the bracket from the block. Featuring more attach points than the original brackets, the design spreads stress loads on engine block thread bosses and bolts. Left bracket features seven bolts, four more than the original. Right bracket features four bolts, one more than the original. Double-welded, all-steel construction for extra strength. No engine block modification necessary. Fits up to existing 4.0L 2000-2006 engine block bolt pattern originally sold on Jeep Wrangler TJ and LJ.

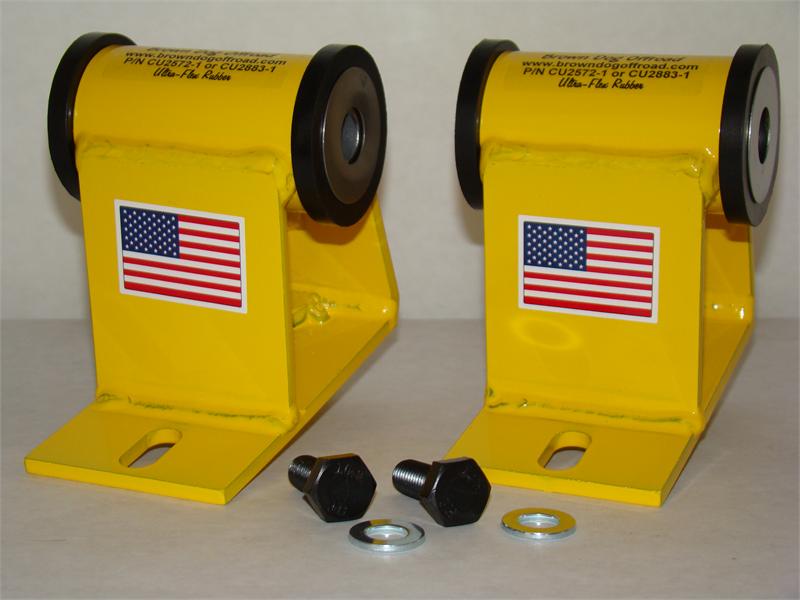

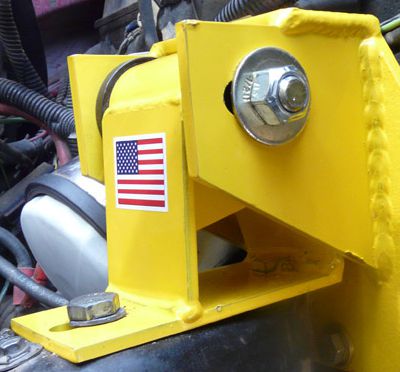

High Performance Ultra-Flex Rubber Motor Mount Lifts feature all-steel, double-welded construction. Lifting engine 1" at the radiator fan, these are high-strength replacements for the originals. Designed to stand up to the toughest trails Arizona can dish out. (Sorry Utah, we can't stand the cold.) When compared to others, these are a substantial upgrade for a fair price. Featuring Ultra-Flex Rubber bushings, these Motor Mounts will dampen some drive line vibration. Want a sportier feel for your rig? Select Classic Polyurthane Motor Mounts in the S2883-1 kit instead. Not sure which is better for you? Compare here.

Ships with Grade 8 Hardware (or 10.9 metric equivalent) required to bolt engine brackets to existing engine block bolt pattern. Also includes new Grade 8 thru-bolts, lock nuts and washers for securing brackets to motor mounts.

Looking for the rare 2" Mount Lifts? Super Kits, SU2883-2, include 2" Ultra-Flex Rubber Motor Mount Lifts (MMLs) with the Super Engine Brackets. The radical 2" motor mount lifts should only be used with radical builds due to hood and other clearance issues. If you're unsure about whether you need 1" or 2" MML, be sure to call or email.

Application Notes:

Wrangler TJ and LJ, 4.0L I6, 2000-2006

Installation Notes

In preparation for installation, we suggest using brake fluid cleaner or PB Blaster to clean out the additional engine block thread bosses.
Since M10 and 3/8 thread bosses are very, very similar, we do not suggest re-tapping holes.
A copy of the installation instructions showing which holes take which bolts will be included with your bracket. We can also email it ahead of time when requested.

Free shipping - USA and APO/FPO addresses using USPS 2-3 day service. International customers pay reasonable shipping fee. Never a "handling charge."
