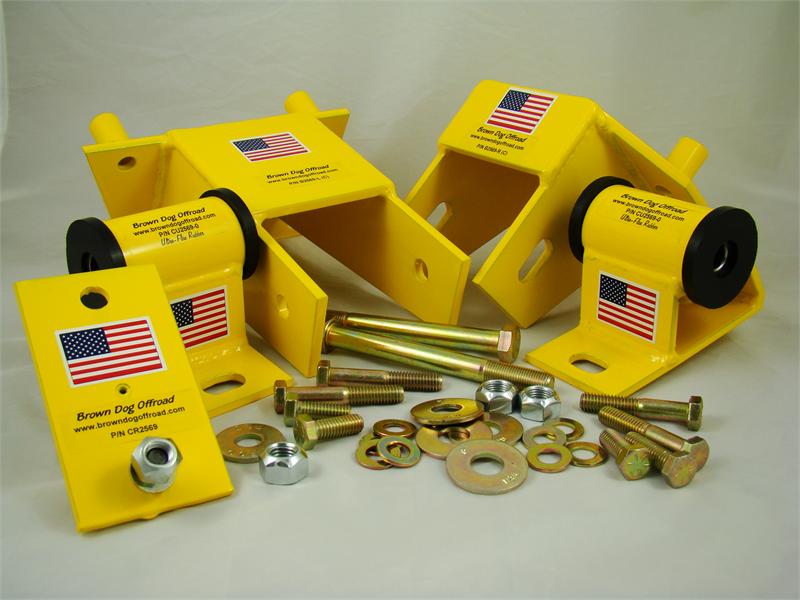

XU2569-1, Extreme Upgrade Kit, 1" Engine Lift, Ultra Flex Rubber

Extreme Kit: Includes Engine Brackets, 1" Motor Mount Lifts, and Mount Cradle
Whether you are replacing broken or worn-out parts or upgrading before a part breaks, this kit won't leave you with a sagging engine miles from civilization. The Brown Dog gives you his promise.

• Pair All Steel Engine Brackets (B2569-P)
• Pair High Performance Jeep 1" Motor Mount Lifts (CU2569-1)
• Replacement Right Mount Support Cradle (CR2569)
• All Grade 8 Hardware or 10.9 Metric Equivalent

All Steel Engine Brackets feature double-welded construction for extra strength. The cast aluminum brackets found on many 4 cylinder Jeeps are prone to failure under the torsional stresses associated with even "easy" offroad trails. Once you've seen a busted cast bracket, you'll know why we continue to use these for our own Wrangler. Identical bolt pattern to the original cast aluminum brackets. No engine block modification necessary. Fits 2.5L Jeep Chrysler engines. Lipless design will not interfere with installation of 1" Motor Mount Lifts. This eliminates possible grinding of lips found on the cast originals.

High Performance 1" Motor Mount Lifts feature all-steel, double-welded construction. These high-strength Motor Mount Lifts (MMLs) bolt into the same locations as the original Jeep motor mounts. Designed to stand up to the toughest trails Arizona can dish out. (Sorry Utah, we can't stand the cold.) The original mounts, designed for street driving, simply won't stand up to the torsional forces experienced offroad. Raises engine 1" at the stock cooling fan. Many customers use 1" MMLs to compensate for driveline angle issues created by a suspension lift or other modification.

Replacement Cradle Supporting Right Mount designed to withstand severe offroad stresses. Constructed entirely of steel and grade 8 (or metric equivalent) studs, cradle bolts directly to the passenger side pylon, holding 1" MMLs in place. The original stamped cradle is very difficult to find, even in salvage yards. Due to it's location between the motor mount and the pylon, it is difficult to see if this is broken. Yet, because it's especially prone to the torsional forces experienced offroad, numerous 2.5L Jeep owners have found their original cradle broken into multiple pieces.

Ships with Grade 8 Hardware (or 10.9 metric equivalent) required to bolt engine brackets to existing engine block bolt pattern. Also includes new Grade 8 thru-bolts, lock nuts and washers for securing brackets to motor mounts.

Application Notes:
This kit replaces everything from the pylon to the block, both left/driver and right/passenger sides. Engine brackets utilize existing bolt pattern found on 2.5L (4 cylinder) Chrysler engines. Studs in some 2.5L engine blocks will be replaced with all new grade 8 bolts. Motor mount lift (left/driver side) and support cradle (right/passenger side) bolt to pylon in same position, using same bolt holes as original configuration.  Right motor mount lift bolts to support cradle. Kit includes new grade 8 through-bolts, washers and lock nuts for securing new motor mounts to new engine brackets.

• 2.5L Wrangler YJ, 1991-1995
• 2.5L Cherokee XJ, 1991-1996
• 2.5L Comanche MJ, 1991, 1992
